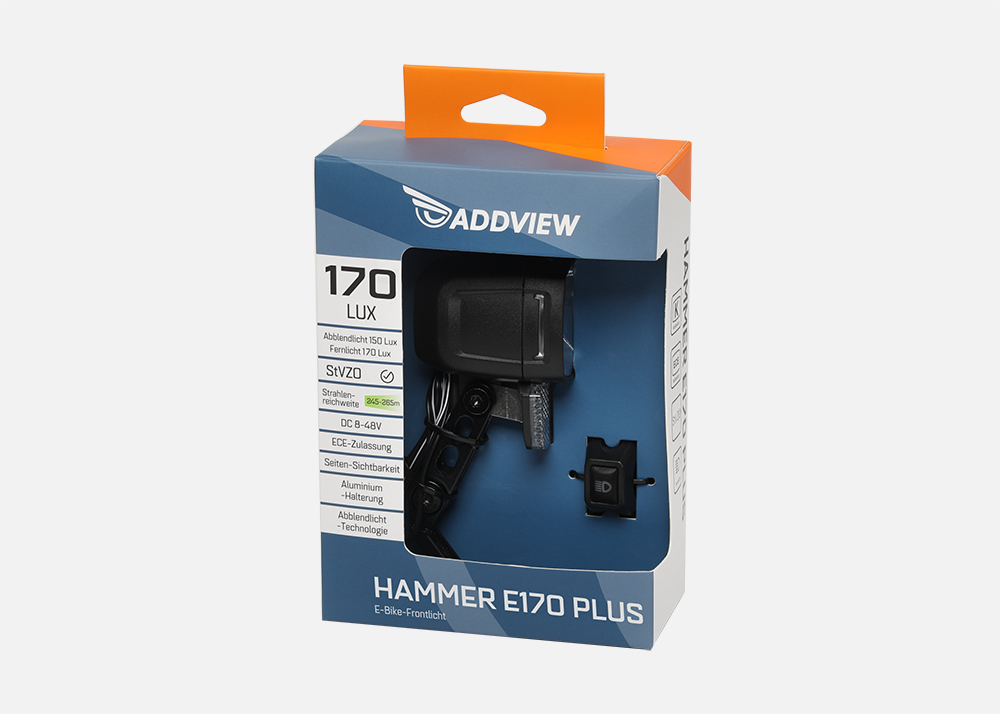

Hammer E170 Plus
High beam:180lux, low beam:150lux

Product detail

User manuel

Hammer E170 Plus is the upgrade E-bike version of Hammer E170 with additional high low beam technology. The light output of high beam mode is 180 lux while low beam mode is 150 lux. It offers a perfect solution for each type of bicycle and for every cyclist. Its clear cut-off line at the edge of lighting beam ensures the light field is non-blind for other road users. Lateral light outlets significantly increase visibility and the safety of the cyclist. The high quality aluminum housing makes Hammer E170 Plus outstanding.
Model name Hammer E170 Plus
Light output High beam:180LUX / Low beam:150LUX
Light source LED*2
Input voltage (DC)8V-48V
Power consumption 8W
Cable length Power:650mm / Switch:630mm
Material Aluminium
Weight 118g
Dimension(WxHxL) 56x46x62mm
Mounting bolt distance φ22.2
Compliance ROHS 2.0/CE
Type of approval StVZO/ECE

Hammer E170 Plus manual
